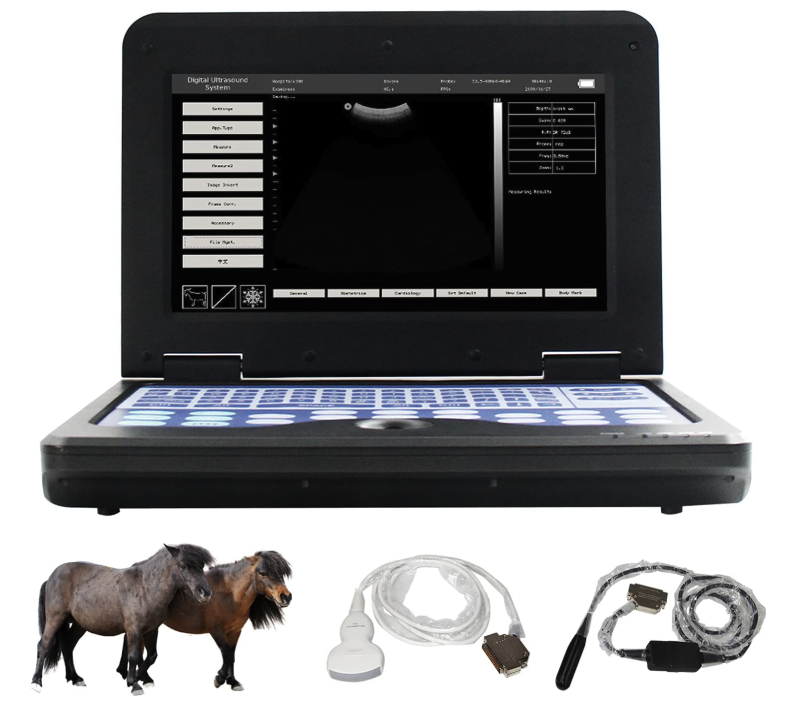

The CONTEC CMS600P2-VET is a portable veterinary ultrasound scanner designed for in-clinic and field use. It provides high-quality imaging capabilities, a variety of probes, and user-friendly features that cater to veterinarians diagnosing and monitoring animal health.
Here's a detailed breakdown based on the provided specifications and use cases.
>> Buy CONTEC Now
Key Features of the CONTEC CMS600P2-VET

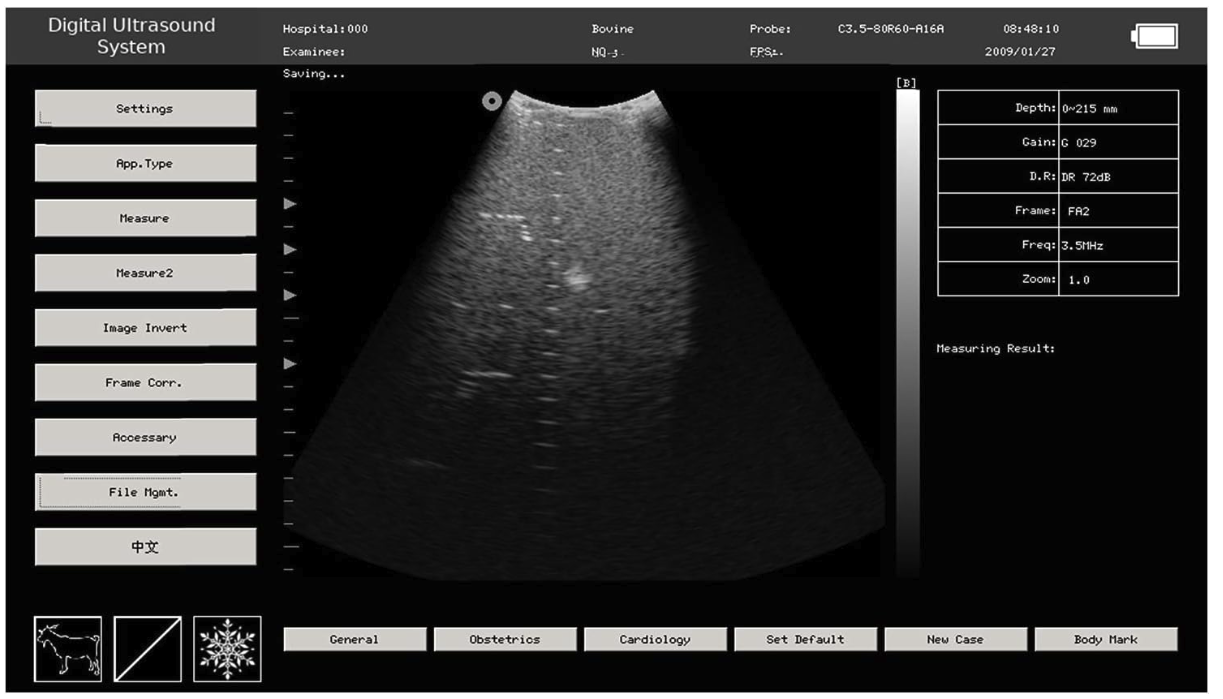

Imaging Technology
Modes: B, 2B, 4B, B/M, and M modes for diverse diagnostic needs.
Image Processing:
Real-time imaging with freeze, memory, and recall functions.
Adjustable focus number, position, and depth.
Advanced image enhancement features such as gamma correction, histogram, and frame correlation.
Image flipping (up/down, left/right) and black/white inversion.
Display and Interface
Screen: 10.1-inch TFT LCD with a resolution of 1024x600.
Menu: Supports Chinese and English operating systems with easy-to-navigate interfaces.
Zoom: 0.9x to 2.0x for detailed imaging.
Probes and Compatibility
Standard Probe: 3.5 MHz convex probe (2.0–5.0 MHz frequency range).
Optional Probes:
7.5 MHz rectal linear probe (5.0–10.0 MHz) for reproductive scans in large animals.
5.0 MHz micro-convex probe for small animals.
6.5 MHz endo-vaginal probe for specialized diagnostics.
Applications: Suitable for obstetrics, urology, cardiology, and small animal and large livestock use.
Data Management
Cine Loop: Stores up to 600 frames for review.
Storage: Capacity for 2048 images; supports USB storage for easy data export.
Printing: Compatible with video, inkjet, and laser printers.
Performance, Specifications, & Technical Details
<p id="technical"></p>
Display Depth: Up to 240 mm.
Resolution: Axial resolution of 2 mm and lateral resolution of 2–4 mm.
Dead Zone: ≤3 mm for detailed near-field imaging.
Portability: Weighs 2.3 kg with compact dimensions (292x232x45 mm), including a carry case for mobile use.
Battery: Rechargeable lithium-ion battery with 2–3 hours of runtime.
Frame Rate
Details: The frame rate directly impacts the smoothness of real-time imaging, particularly useful for cardiac scans or fetal movement monitoring.
Specification: Typically operates at 30 frames per second (FPS) in B-mode for real-time precision.
Voltage and Power Consumption
Voltage: Operates on DC15V, ensuring compatibility with portable power sources like car adapters or solar systems.
Power Consumption: Rated at ≤45 VA, making it energy-efficient and suitable for prolonged field use.
Durability Certifications
Build Durability: Although no explicit IP rating is provided, the device is constructed with robust materials, suitable for field environments.
Shock Resistance: Designed to withstand minor impacts during transport, aided by the compact, padded carrying case.
Software Customization
Customization Options:
Adjust default measurement formulas for different species and regions.
Modify dynamic range, focus settings, and gain profiles based on specific diagnostic needs.
Compatibility: Updates via USB ensure the scanner remains current with evolving veterinary practices.
Connectivity Options
Interfaces:
USB: Supports image export to external drives.
Video/VGA Ports: Allows connection to external monitors or printers.
Limitations: Lacks Bluetooth or Wi-Fi, which may limit integration with wireless setups.
Built-in Safety Features
Electrical Safety: Type BF applied parts minimize risks associated with electrical shocks during use.
Thermal Regulation: Integrated safeguards prevent overheating, even during extended use.
Calibration and Maintenance
Calibration: Self-calibrating software eliminates the need for frequent manual adjustments.
Maintenance Support: Easily accessible parts and CONTEC’s widespread service network streamline repairs and replacements.
Applications

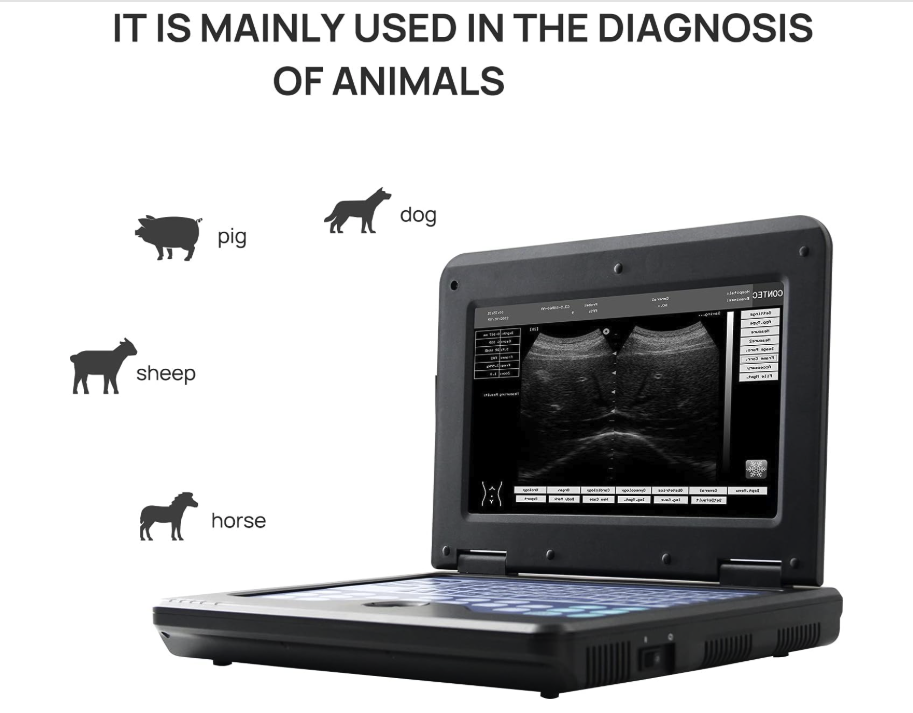

Animal Types
Small Animals: Dogs, cats, and other pets for general diagnostics and pregnancy detection.
Large Livestock: Horses, cows, sheep, goats, and pigs, including obstetric and abdominal imaging.
Veterinary Use Cases
Pregnancy Detection: Ideal for farms and breeding operations.
Abdominal Scans: Comprehensive internal organ diagnostics.
Orthopedic and Tissue Scans: Suitable for small parts and tissue evaluations.
Cardiology: M-mode imaging for basic heart diagnostics.
Advantages
Portability: Lightweight design with a carrying case and battery-powered operation, perfect for fieldwork.
Ease of Use: Pop-up menus, touch keyboard, and trackball controls streamline diagnostics.
Versatility: Supports multiple probes and a range of species-specific applications.
Affordability: Cost-effective for veterinary practices compared to high-end systems.
Limitations
Advanced Features: Lacks Doppler imaging for blood flow diagnostics.
Learning Curve: Requires basic training to utilize its features effectively.
Image Quality: While sufficient for general use, not as detailed as higher-end devices.
Pricing
Base Price: Typically ranges from $1,249 to $1,649, depending on the probe configuration.
Optional Add-ons: Additional probes and accessories may increase the cost.
Customer Feedback
<div id=”pros-cons”></div>
Pros:
Clear imaging and reliability for routine diagnostics.
Excellent customer support and service from CONTEC.
Highly portable and cost-effective for small-scale veterinary operations.
Cons:
Occasional hardware issues like battery faults.
Limited compatibility with live video recording.
Ideal Users
Veterinarians needing a reliable, portable ultrasound for mixed animal practices.
Farmers and breeders requiring pregnancy detection tools.
Small clinics looking for an affordable diagnostic solution.
Specialized Use Cases
Veterinary Applications
Equine Care:
Superior for tendon evaluations and reproductive health monitoring in mares.
Wildlife and Exotic Animal Use:
Compact size makes it feasible for zoos and wildlife rehabilitation centers.
Versatility supports a range of species, from large mammals to reptiles.
Remote and Rural Use
Advantages:
Lightweight and portable with a reliable battery, perfect for veterinarians in off-grid areas.
USB compatibility ensures seamless data sharing in locations without internet access.
Integration with Farm Management
Economic Impact:
Helps optimize breeding schedules by identifying early pregnancies.
Reduces veterinary costs by enabling in-house diagnostics.
Competitive Analysis
<div id=”competitive-analyis”></div>
Comparison with Similar Models
When comparing veterinary ultrasound scanners, the CONTEC CMS600P2-VET, DAWEI S1 Veterinary Scanner, and Easi-Scan GoDisplay each offer unique features catering to different needs. The CONTEC CMS600P2-VET comes equipped with a 10.1-inch TFT LCD screen offering a resolution of 1024x600, making it suitable for detailed imaging. In contrast, the DAWEI S1 features a smaller 7-inch LCD screen, while the Easi-Scan GoDisplay opts for a wireless, app-based setup with no built-in screen.
In terms of probes, the CONTEC CMS600P2-VET offers versatility with convex, rectal, and micro-convex probes, while the DAWEI S1 only supports a convex probe. The Easi-Scan GoDisplay stands out with its wireless probe options, enhancing portability. For mobility, the CONTEC CMS600P2-VET and DAWEI S1 are lightweight and battery-powered, but the Easi-Scan GoDisplay takes portability to the next level with its wireless, compact design.
Feature-wise, the CONTEC CMS600P2-VET includes advanced image enhancements such as image flipping and gamma control. The DAWEI S1 offers basic image adjustments, whereas the Easi-Scan GoDisplay boasts Doppler imaging for superior diagnostic capabilities. Pricing varies significantly, with the CONTEC CMS600P2-VET priced between $1,249 and $1,649, the DAWEI S1 at a more affordable $999, and the Easi-Scan GoDisplay starting at $2,000 or higher, reflecting its advanced features.
Cost Efficiency
Usage Cost: At an average price of $1,499, the cost-per-use becomes negligible after scanning ~15 animals compared to outsourcing veterinary services.
Long-Term ROI: Savings on vet visits and breeding management outweigh the initial investment.
Customer Insights
Positive Trends
Clear Imaging: Users frequently praise the clarity and reliability of the images for routine diagnostics.
Responsive Customer Support: Many reviews highlight quick issue resolution and replacements.
Ease of Transport: Lightweight and durable design is ideal for mobile vets.
Negative Trends
Hardware Issues: A small percentage report battery or power button malfunctions after extended use.
Learning Curve: Beginners often require extra time or guidance to operate the device effectively.
Outdated Tech: Lack of advanced features like wireless connectivity may deter users accustomed to more modern systems.
Performance in Harsh Conditions
Temperature Range: Operates reliably between -10°C and 50°C, making it suitable for farms in extreme climates.
Resistance to Dust and Moisture: Though not fully water-resistant, the device’s sealed components offer moderate protection in dusty or humid environments.
Training and Support
Available Resources
Online Manuals: CONTEC provides a downloadable user guide covering setup and troubleshooting.
Training Videos: Tutorials explain common diagnostic procedures like pregnancy confirmation and abdominal scans.
24/7 Support: Email and phone support ensure timely assistance for technical issues.
Beginner-Friendly Design
Intuitive Controls: Pop-up menus and a responsive trackball minimize the learning curve.
Veterinary-Specific Features: Preloaded measurement formulas simplify species-specific diagnostics.
Warranty and Maintenance
Warranty
Standard Coverage: 1-year manufacturer warranty for hardware issues.
Extended Options: Additional warranty plans may be purchased for long-term peace of mind.
Maintenance Tips
Regularly clean probes with approved solutions to extend their lifespan.
Use the included carrying case to prevent damage during transport.
Accessories Breakdown

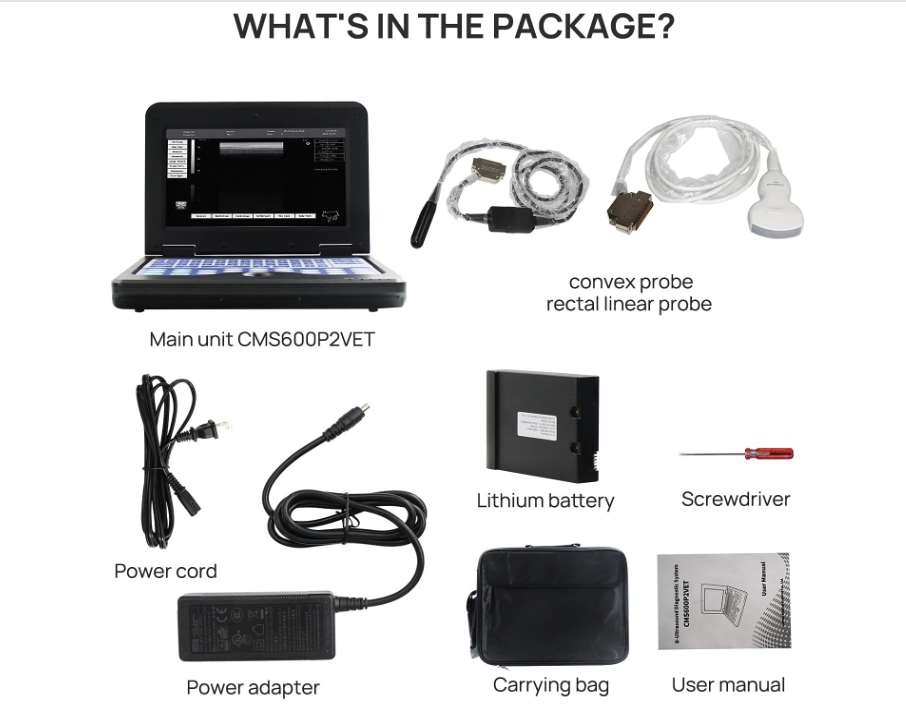

Included in Package
3.5 MHz Convex Probe
Rechargeable Lithium-Ion Battery: Provides 2–3 hours of runtime.
Carrying Case: Padded and lightweight for portability.
Power Adapter and Cord: Essential for mobile and clinic use.
USB Drive: For data storage and software updates.
Optional Accessories
Additional Probes: Tailored to specific needs, such as the 7.5 MHz rectal probe for large livestock.
Printer Compatibility: Connects with video, inkjet, or laser printers for report generation.
Eco-Friendly Design
Energy Efficiency: Low power consumption makes it suitable for off-grid solar systems.
Sustainable Packaging: Delivered in recyclable materials, reducing environmental impact.
Customer Reviews for the CONTEC CMS600P2-VET Veterinary Ultrasound Scanner
<div id=”amazon-reviews”></div>
Overall Rating: ★★★★☆ (4.1/5 based on 186 ratings)
Top Reviews From Verified Purchasers
Power On and Go!
★★★★★ | Amazon Customer | December 5, 2023 | Verified Purchase
"This has been a great machine for our goat herd. It takes a little bit to figure out the adjustments, but you really don’t need them. Our machine worked great for almost 2 years before showing an FPGA code issue. Contec’s support team was amazing—they replaced the machine with minimal hassle. Great quality for the price and does everything we need!"
Helpful Votes: 4
Very Happy with This Ultrasound!
★★★★★ | Jessie G | December 8, 2022 | Verified Purchase
"It does everything I need! I was able to confirm pregnancy in my dog with ease. I’ve had training in ultrasound, but I think even for a beginner, the CONTEC CMS600P2-VET Veterinary Ultrasound Scanner is great. It delivers a clear image and simple functions. Excited to use it for goat kidding season too!"
Helpful Votes: 27
Don’t Buy It!
★☆☆☆☆ | Suzy R. Lopez | March 4, 2024 | Verified Purchase
"I am so disappointed. The CONTEC CMS600P2-VET Veterinary Ultrasound Scanner seemed nice and gave decent images, but after just three months of use (8 total sessions), it stopped working. I take good care of my equipment, and now I’m out of luck since the return window has closed. Save your money!"
Helpful Votes: 5
High Quality, Excellent Customer Service
★★★★★ | Julie | February 1, 2022 | Verified Purchase
"I was skeptical buying a product made in China, but the CONTEC CMS600P2-VET Veterinary Ultrasound Scanner exceeded my expectations. Initially, the battery had a charging issue, but Contec sent a prepaid return label and replaced it quickly. The replacement has worked perfectly since! It’s easy to use, and the images are good quality. We’ve successfully ultrasounded six goats with it!"
Helpful Votes: 20
Great for At-Home Use
★★★★★ | Donna O. | May 10, 2024 | Verified Purchase
"I breed French bulldogs, and the CONTEC CMS600P2-VET Veterinary Ultrasound Scanner saves me trips to the vet for pregnancy confirmations. It keeps my dogs calm since I’m the one performing the scans, and the results are clear and reliable."
Helpful Votes: 1
Obsolete Technology
★★★☆☆ | AMAXAMA | January 18, 2024 | Verified Purchase
"The CONTEC CMS600P2-VET Veterinary Ultrasound Scanner feels outdated and cumbersome. It takes time to set up and requires two people for my purposes. The inability to record live videos was a dealbreaker. I’ll be returning it for a more modern, wireless alternative."
Helpful Votes: 3
Great Machine for the Money
★★★★☆ | Troy Woodruff | March 16, 2022 | Verified Purchase
"I use the CONTEC CMS600P2-VET Veterinary Ultrasound Scanner to track follicle growth in ball pythons. It’s easy to use, though a 'freeze image' pedal would have been a great addition. Overall, it’s excellent value for functional medical equipment."
Helpful Votes: 6
Amazing Machine
★★★★★ | Thalia Barberis | May 20, 2024 | Verified Purchase
"The CONTEC CMS600P2-VET Veterinary Ultrasound Scanner is fantastic! It’s portable, easy to use, and the customer service from the seller was excellent."
Frequently Asked Questions From Veterinary Experts Just Like You
<div id=”faq”></div>
1. What animals can the CONTEC CMS600P2-VET scan?
The scanner is suitable for a wide range of animals, including dogs, cats, horses, cows, sheep, goats, pigs, and even exotic or small animals.
2. What probes are included, and what are the optional ones?
The standard package includes a 3.5 MHz convex probe. Optional probes include:
7.5 MHz rectal linear probe (for large animals like cows and horses)
5.0 MHz micro-convex probe (for small animals)
6.5 MHz endo-vaginal probe (for specialized diagnostics)
3. Can the device confirm pregnancies?
Yes, the CONTEC CMS600P2-VET is ideal for pregnancy detection in both small and large animals.
4. Is this ultrasound portable?
Yes, the device is lightweight (2.3 kg), compact, and comes with a carrying case. Its built-in battery provides 2–3 hours of runtime, making it perfect for fieldwork.
5. Does the scanner support live video recording?
No, the device does not support live video recording. It does, however, offer real-time imaging and stores up to 600 frames in its cine loop.
6. How is the image quality?
The device provides clear and detailed images with advanced features like gamma correction, histogram adjustments, and frame correlation. The resolution is sufficient for most veterinary diagnostics.
7. Can I export images to a computer or external drive?
Yes, the scanner supports USB storage, allowing you to transfer images and reports to external devices.
8. What printers are compatible with the CONTEC CMS600P2-VET?
The device is compatible with video, inkjet, and laser printers for printing diagnostic reports.
9. What are the display modes?
The scanner offers multiple display modes: B, 2B, 4B, B/M, and M, catering to diverse diagnostic needs.
10. Is training required to use the device?
While the device is user-friendly with intuitive controls, some basic training or familiarity with ultrasound imaging is recommended for optimal use.
11. How do I update the device software?
Software updates can be performed using a USB drive, ensuring the scanner stays up-to-date with the latest features.
12. What is the warranty period?
The CONTEC CMS600P2-VET comes with a 1-year manufacturer warranty. Extended warranties may be available for purchase.
13. Can I adjust the focus and depth during scans?
Yes, the scanner allows you to adjust the focus number, position, and depth to customize the imaging for specific diagnostic needs.
14. Does it work in harsh environmental conditions?
Yes, the scanner operates reliably in a wide temperature range (-10°C to 50°C) and is designed for use in dusty or humid environments, although it is not fully waterproof.
15. How many images can be stored on the device?
The scanner has a storage capacity for up to 2,048 images and supports additional storage via USB.
16. Can the device measure and calculate specific parameters?
Yes, the scanner can measure distance, circumference, area, volume, angle, slope, and ratios. It also calculates gestational age for various animal species.
17. Is the battery replaceable?
Yes, the rechargeable lithium-ion battery is replaceable and designed for extended use in mobile scenarios.
18. Does the scanner support multiple languages?
Yes, the interface supports Chinese and English, catering to a broad user base.
19. What is the device’s depth penetration?
The scanner provides a display depth of up to 240 mm, suitable for both superficial and deeper imaging.
20. Is it suitable for cardiac imaging?
Yes, the scanner’s M-mode is specifically designed for basic cardiac imaging, making it useful for heart diagnostics.
